Quick Details

  • Type: Flexographic Printer
  • Condition: New
  • Plate Type: Letterpress
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: xulin
  • Model Number: 480
  • Usage: Paper Printer, Other
  • Automatic Grade: Automatic
  • Color & Page: Other
  • Voltage: 220V/380V
  • Gross Power: 15kw
  • Dimensions(L*W*H): customized
  • Weight: 2000kg
  • Certification: CE Certification
  • After-sales Service Provided: Overseas service center available
  • keyword: printing slotting machine
  • size: customized
  • printer speed: 120
  • operation: easy
  • accuracy: high
  • small quantity order: acceptable
  • warranty: 1 year
  • function: auto-adjust
  • company name: xulin

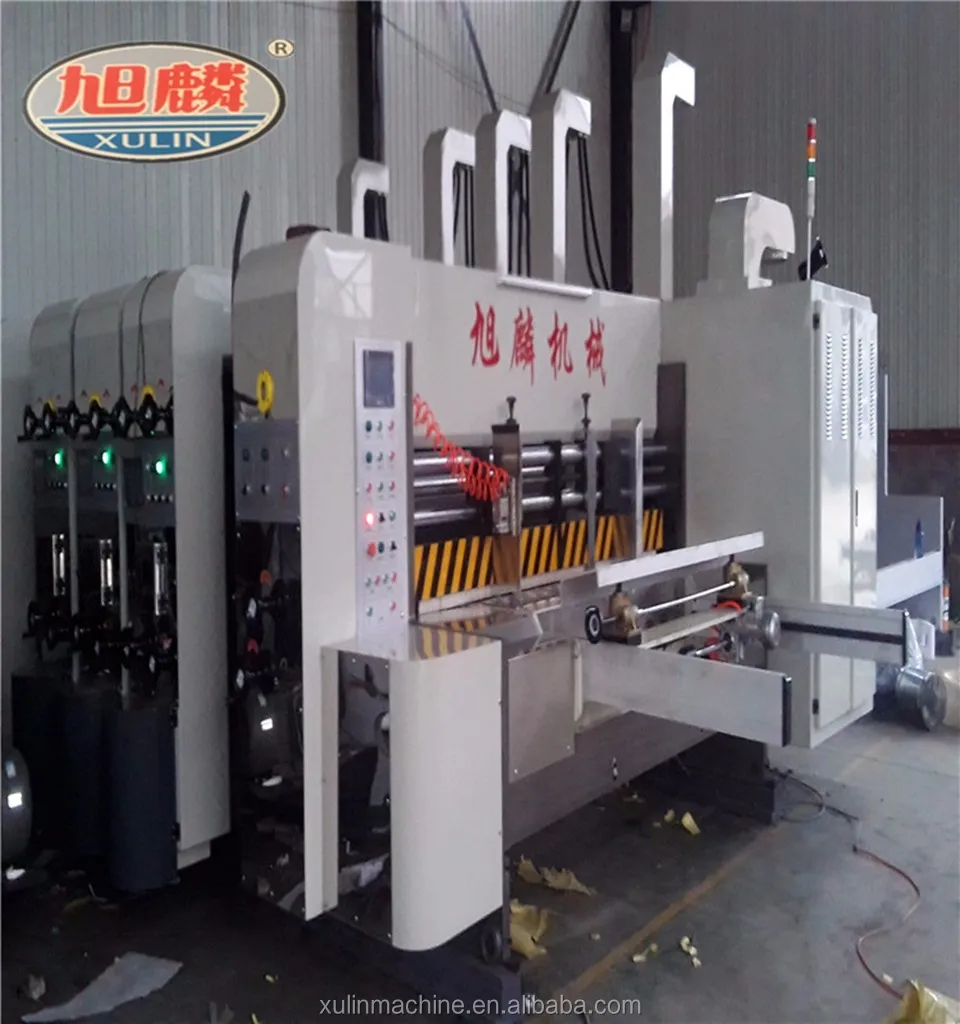

  • machine name: flexo multi colour printing slotting machine

Packaging & Delivery

Packaging Details: the normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery Detail: 1 month or on
printing machine two

Feature use:

1.Designed According the high request and the reliable function , the operation of the machine is humanization , can accomplish the setting , revision , implement,function in a shot time , and display with a exact data.

2.Adopting advanced vacuum absorb lead edge feeding sysyem , with stable high speed ,easy operation and high accuracy.

3. All the drive rollers adopted high quality steel materials , hard chromium plating and the surface treated by lapping finish. The drive gears adopt high quality alloy steel , decrease and lapping finish.

4.The main drive roller adopt keyless connect, decrease the connection gap , guarantee the printing precision.

5. Self- locking device .When working, the machine be locket up otherwise . It can not start all the beginning . Enhance the security in working time.

6. Auto-zero device ensur ing uniform adjusted of the machine and decrease waste.

7.Suitable for 3/5/7 layer corrugated paperboard . as well as flute paperboard .

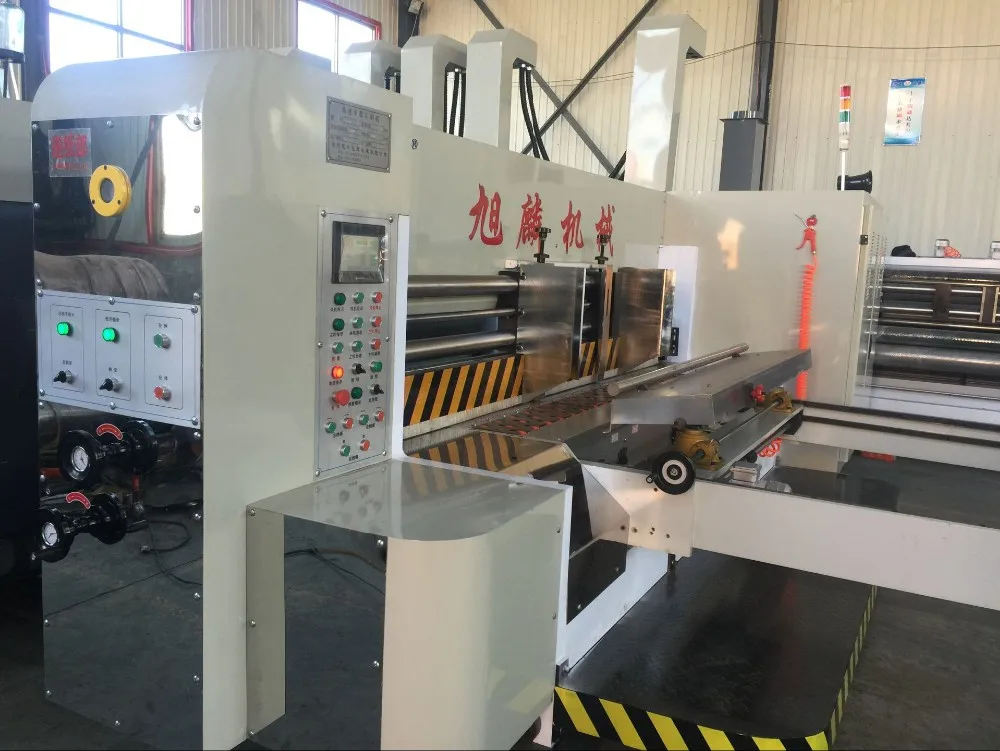

Feed part

1.Adopting advanced lead edge feeding system , with stable high speed ,easy operation and high accuracy.

2.High pressure centrifugal fans(7.5).The absorption force can be adjusted to different cardboard thickness and dimension.Frequency converter control the force , make sure the smoothly feeding.

3.The left, right bar is manually adjust .Digital display , prompt accurate and convenient . The gap of front bar is manually adjusted.

4.Has interval paper feeding device.(continuous or interval feeding is optional). Convenient for larger sized cardboard printing .

5.Equipped with brush device(4kw)to sufficiently eliminate  dust and scraps as well as foreign substances on the printing surface and to improve printing quality.

6.Internal of the feeding roller is adjusted by high precise worm box with a range of 0-11mm.

7.The feeding roller is embossing and chrome plated and subject to balance alignment.

8.Inter locking switch with slotting unit, realize the Scram, stop feeding or Re--feeding,Forward and reverse Jog .More humanity .

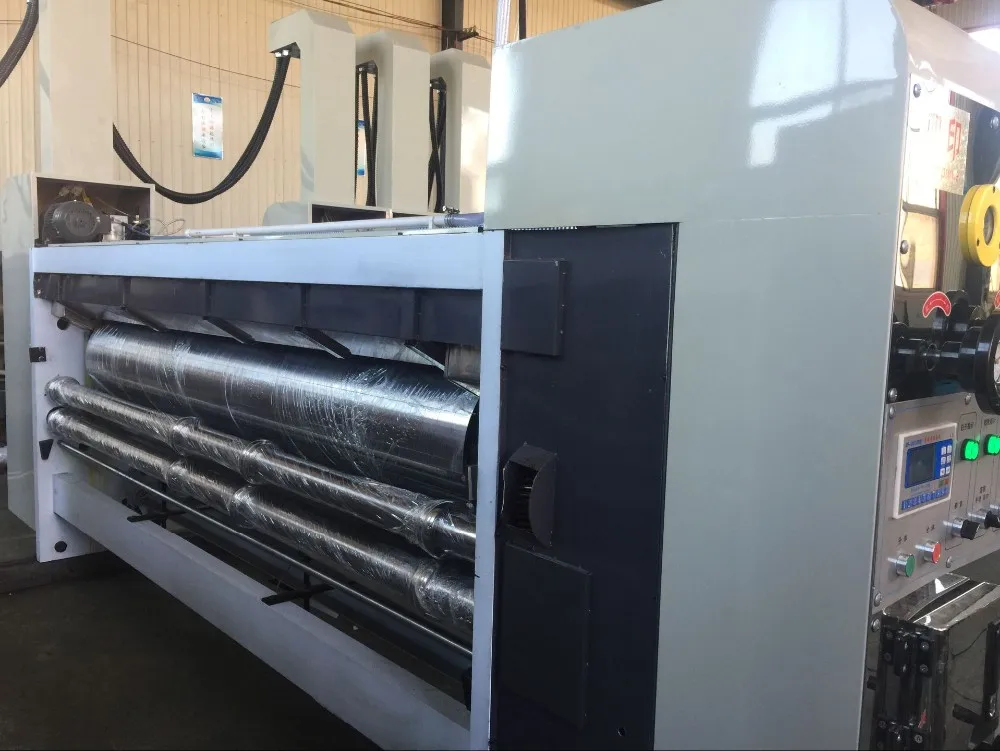

printing unit

1.Prinitng  phase adopt electrical digital adjusting with 360 degree(stop and running).

2.Printing roller with  super quality steel plate object to balance alignment and chrome plated.stable  operation and highy speed .

3.Ratchet coil axis with looking up device ensure more faster and precise plate installation. Foot switch control the turning direction of ro;;er.

4.Anilox roller. Printing press roll adopt Steel pipe with grinding and chrome plated.Subjedt to balance alignment , stable operation.

5.The gear can be adjusted without back lash mechanism.TRhe adjustment does not affect the gear meshing to ensure transmission accuracy.

6.DIF device with the anifox roller so  that it can wipe ink . automatic prevent dry of unk.

7.Auto--zero device ensuring uniform adjusted of the machine and decrease waste.

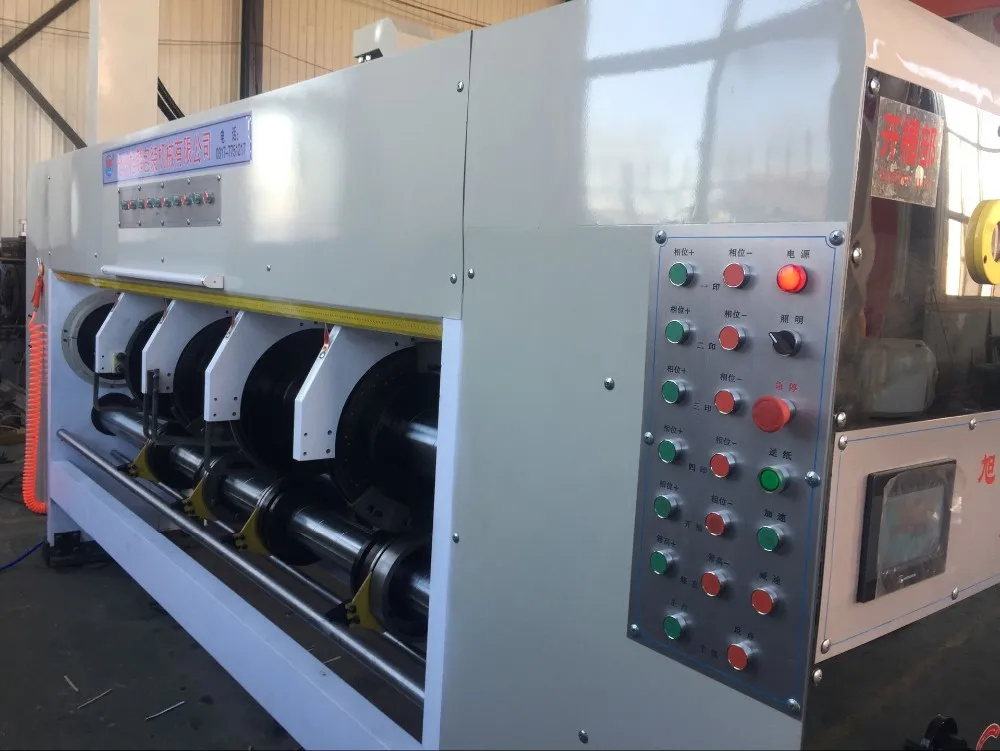

slotting unit

1.Equipped with 2 set of knife sent fixed many kinds of cardboard.Trim blade and the lower edge knife is alloy steel with heat creatment and grinding .sharp blade and long lifespan.

2.Upper Shaft diameter , lower Shaft diameter seamless steel pipe with twice grinding and chrome plated . Highly rigid shaft, hard- wearing , stably moving .

3.Four knives adjustment , with length , width adjustment upper  and lower knife stand ,perssing line .cutting knife ruler , pressing paper pole which have combined movement by tools , saving order  changing time.

4.The length and wide of the carton is synchronic control and adjusted by tools with 4 knives united movement.

5.Cormer cutting seat applies soft connect , prolong using life and prevent unclear cutting .

6.Slotting phase adopt electrical digital adjusting with 360 degree (stop and running ).

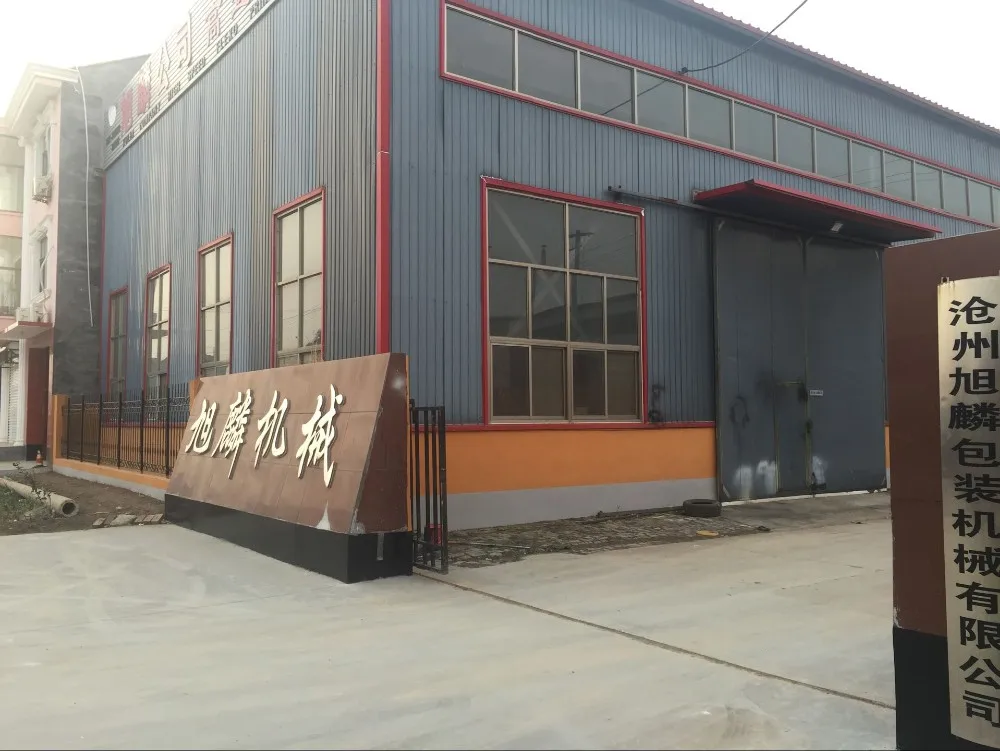

our company
FAQ

1.Are you a manufacture?
Yes, we are specilized in producing corrugated carton production line machine.
2.What's the payment term?
Payment term: T/Tbefore shipment, L/C or Moneygram.
We accept payment via the Paypal/Westerm union/TT, you can choose as you like.
3.How can we trust you&your company?
We are warmly welcome customer to visit our factory before place order. In this case we can know more about each other.And also strongly invite customer to inspect the machine before delivery to make sure the products that we plan to ship is customer's actual order. And we will take pictures of all the detail delivery.
4.How  long can i get the feedback after we sent enquiry ?

We  will reply you within 12 hours in working day .

5. Are  you  a  factory  or  trading company ?

We  are a manufacturer which is specialized in the production of variety of cartton machines for many years.
